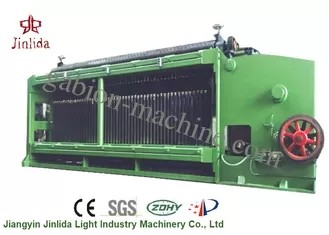

High Speed Automated Gabion Machine CE , Gabion Mesh Machine
Quick Detail:
1.The series gabion mesh machines have been designed to make gabion mesh of various widths and mesh sizes.
2.The possible coatings are heavily galvanized and zinc.
3.For high corrosion resistance, zinc and PVC, galfan coated wire is available.
Specifications
| Style | Size | Width | Diameter | Spindle Speed | Power of Motor | Theoretic Output |
| (mm) | (mm) | (mm) | (r/min) | (kw) | (m/h) |
| LNWL43-60-2 | 60×80 | 4300 | 1.6-3.2 | 25 | 22 | 165 |
| LNWL43-80-2 | 80×100 | 1.6-4.0 | 195 |
| LNWL43-100-2 | 100×120 | 1.6-4.0 | 225 |
| LNWL43-120-2 | 120×150 | 1.6-4.2 | 20 | 255 |
Description:
This kind of machine use the seamless iron tube to increase inside diameter , so you can put more spring wire at the same time. We improved the structure according Italy machine.
The series gabion mesh machines have been designed to make gabion mesh of various widths and mesh sizes. The possible coatings are heavily galvanized and zinc. For high corrosion resistance, zinc and PVC, galfan coated wire is available.
We can manufacture gabion machine according to customer request.
Now all of our double rack drive gabion machine also have been changed to seamless iron tube, it can increase inside diameter to put more spring wire and also can reduce the weight of machine, make machine working more fast.
And this new machine is very popular on market, we have sold more than 80 sets of machine to our China mainland, also sell to oversea such as Malaysia, Algeria.
Picture for hexagonal mesh machine working
Detail Specification for all style of LNWL-ZX Gabion Machine
| Style | Mesh Size | Width | Wire Diamater | Spindle Speed | Twist | Power of Motor | Theoretic Output |
| (mm) | (mm) | (mm) | (r/min) | (r ) | (kw) | (m/h) |
| LNWL43-60-2ZX | 60X80 | 4300 | 1.6-3.2 | 25 | 3 | 22 | 165 |
| LNWL43-80-2ZX | 80X100 | 1.6-4.0 | 3 | 195 |
| LNWL43-100-2ZX | 100X120 | 1.6-4.0 | 3 | 225 |
| LNWL43-120-2ZX | 120X150 | 1.6-4.2 | 20 | 3 | 255 |
| LNWL43-60-3ZX | 60X80 | 4300 | 1.6-3.2 | 25 | 5 | 22 | 165 |
| LNWL43-80-3ZX | 80X100 | 1.6-4.0 | 5 | 195 |
| LNWL43-100-3ZX | 100X120 | 1.6-4.0 | 5 | 225 |
| LNWL43-120-3ZX | 120X150 | 1.6-4.2 | 20 | 5 | 255 |
Gabion Machine Packing
Advantages:
1.Jinlida has rich experience and professional skills to meet your needs and satisfy your requirements.
2.We have 15 years export experience establishing trade with more than 30 countries.
3.All the parts of gabion mesh machine are produced by our Jinlida, no parts were sending outside to produce, so we can guarantee the quality.
