4300mm Construction Gabion Wire Mesh Machine Double Twist

Custom Wire Netting Hexagonal Mesh Machine For Construction , 4300mm Width

Quick Detail:

1. Mesh sizes:120X150mm

2. twist: double twist

3. Max. netting width:4300mm

4. Max. galvanized wire diameter: 3.5mm

5. Max PVC wire diameter:4.5mm

Description:

Gabion Machine widely used in oil, construction, raising, chemical industry warming piping and etc. It is also

used in fence, apartment and greening. The hexagonal wire netting can be used in protect sea wall, hillside,

road, bridge and civil engineering. It is one of the best against flooding material.

The series gabion mesh machines have been designed to make gabion mesh of various widths and mesh

sizes. The possible coatings are heavily galvanized and zinc. For high corrosion resistance, zinc and PVC

coated wire is available

Specifications:

1. Mesh sizes:120X150mm

2. twist: double twist

3. Max. netting width: 3300mm

4. Max. galvanized wire diameter: 3.5mm

5. Max PVC wire diameter:4.5mm

6. Spindle Speed:20r/min

7. Power: 15Kw

8. Size: 7200 x 1400 x 2400mm

9. Weight: 15MT

10. Theoretic output: 255m/hr

11. Automatic stop system (option): when the coiling finished or wire broken, the machine will stop

automatically

12. Infrared ray safety protection system (option)

13. Automatic oil system

Gabion Box Making Machine

Products of Gabion Machine

Gabion Box Application

Advantages:

1.According to the products and raw materials appropriately adjust the speed and reduce rate of broken.

2. Mesh is well-arranged and distributed evenly and orderly.

3.Simple operation.

double twist Construction Wire Mesh Machine

hexagonal gabion wire mesh machine

double twist gabion wire mesh machine

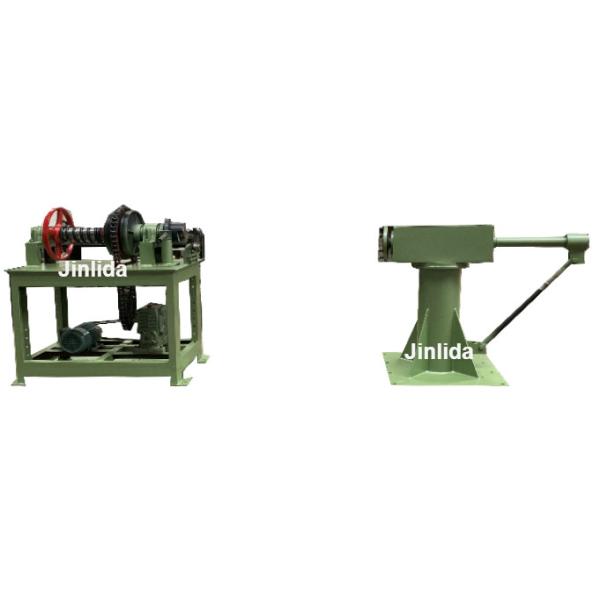

4300mm Construction Gabion Wire Mesh Machine Double Twist Images
