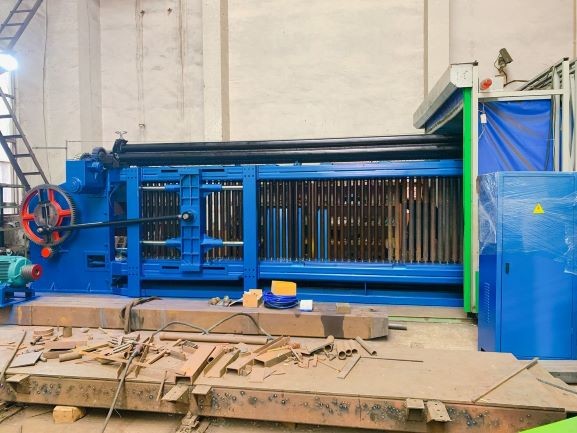

Automatic Hexagonal Knitting Gabion Wire Mesh Machine
Quick Detail:
1. Mesh sizes: 120x150mm
2. twist: double twist
3. Max. netting width: 2300mm
4. Max. galvanized wire diameter: 1.6-3.5mm
5. Max PVC wire diameter: 4.5mm
6. Spindle Speed:20r/min
7. Power: 11Kw
8. Weight: 15MT
9. Theoretic output: 255m/hr
10. Automatic stop system (option): when the coiling finished or wire broken, the machine will stop automatically
11. Infrared ray safety protection system (option)
12. Automatic oil system
Descrition:
Gabion machine JINLIDA brand
Our factory have provided OEM service to China.
1. Invented first double twist gabion machine in China
2. Apply for national patents, number is ZL99229381.2 and ZL00267066.5
3. SGS,TUV certificate
Gabion machine
JINLIDA series machine is designed to make hexagonal wire mesh of various widths and mesh sizes.
We have 15 years export experience establishing trade with more than 30 countries, and ,
DEACERO, NOVA-S a.s.& DKG and TFS HOLDINGS are our long-standing relationship customers.
Heavy Duty Hexagonal Gabion Mesh Machine
Heavy Duty Hexagonal Gabion Mesh MachineHeavy Duty Hexagonal Gabion Mesh MachineHeavy Duty Hexagonal Gabion Mesh Machine
Big gear wheel
Reed Pipe
Competitive Advantage:
1. JINLIDA company invented the first special equipment of double twisted wire netting making machine in
China (patent number: ZL99229381.2 and ZL00267066.5). And until now, we have persevered in this area
of gabion machine making for 15 years.
2. All the parts of gabion machine are processed by our own factory; no parts were send to outside to
process, so the quality can be ensured.
3. We can provide 12months guarantee for all the equipments, and if customer need, we will arrange our
technician to help install the machines in your country, and also could supply all the spare parts with cost
price if customer need.
